Chinese candy manufacturing production lines, candy production equipment

FOB Reference Price:Get Latest Price
US $10,000-60,000 / Sets | 100 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LF
Model Number:
LF-1233
Type:
candy production line
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden
Port
Shanghai, China
Lead Time :
Shipped in 30 days after payment
Video Description
Product Description

Packaging & Delivery

Packaging Details:plastic film wrapped pectin candy machine in wooden cases
Delivery Detail:Within 45days upon the receipt of the down payment

Specifications

CLM series automatic Jelly/pectin candy making machine(metal moulds)Aluminum mould with Teflon coating



CLM series automatic Jelly/pectin candy making machine(metal moulds)Aluminum mould with Teflon coating





Product Description



QQ(JelIy) candy processing line is an advanced and continuous plant for making different sizes of jelly candies (QQcandies).It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied. This deposinting line consists of jacket dissolving cooker, gear pump, storage strainer, storage



tank,discharging pump, color & flavor jigger, color & flavor mixer, depositor, cooling tunnel, e|ectric control cabinet, etc



The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies(QQ candies) . It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.



The processing line is advanced and continuous for making different size of gelatin-type soft candies (such as QQ candies). It is ideal equipment to produce high quality soft candies. With the sanitary structure design, on one hand it can produce one or two colors candy;



on the other hand, it can automatically blend the essence pigment and fermenting liquid in accurate quantity ratio. High-degree automation ensures of stable production and saves time and labor force and occupations to serve the purpose of reducing the cost.



TECHNICAL SPECIFICATIONS:



Model

CLM150

CLM300

CLM600

Production capacity   ( kg/h)

150

300

600

Depositing Quantity (pcs/stroke)

40

80

160

Weight of each candies(g):

As per candy size

Electric power needed

12kw/380V

18kw/380V

24kW/380V

Chiller (option)

8HP

12HP

16HP

Compressed air consumption

Compressed air pressure

0.5m3/min

0.4-0.6 Mpa

0.80m3/min

0.4-0.6 Mpa

1.20m3/min

0.4-0.6 Mpa

Conditions needed for

 the cooling system:

1.Room temperature(℃)

2.Humidity (%)





20~25

55





20~25

55





20~25

55

Length of the whole line (m)

15m

15m

18m

Gross weight (Kgs)

Approx.5000

Approx.6000

Approx.8000

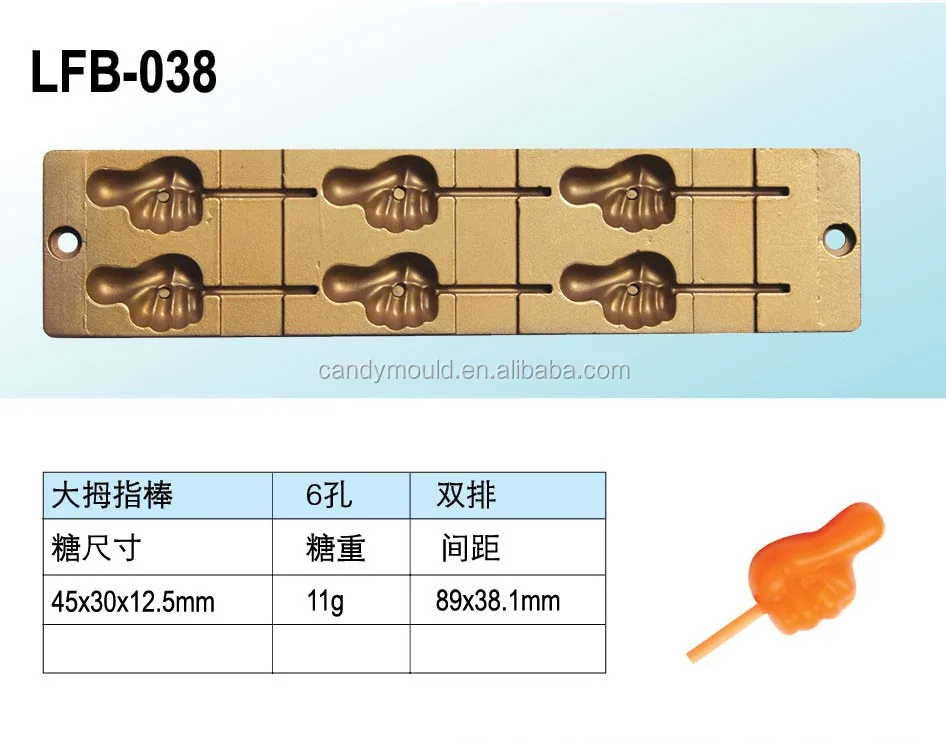

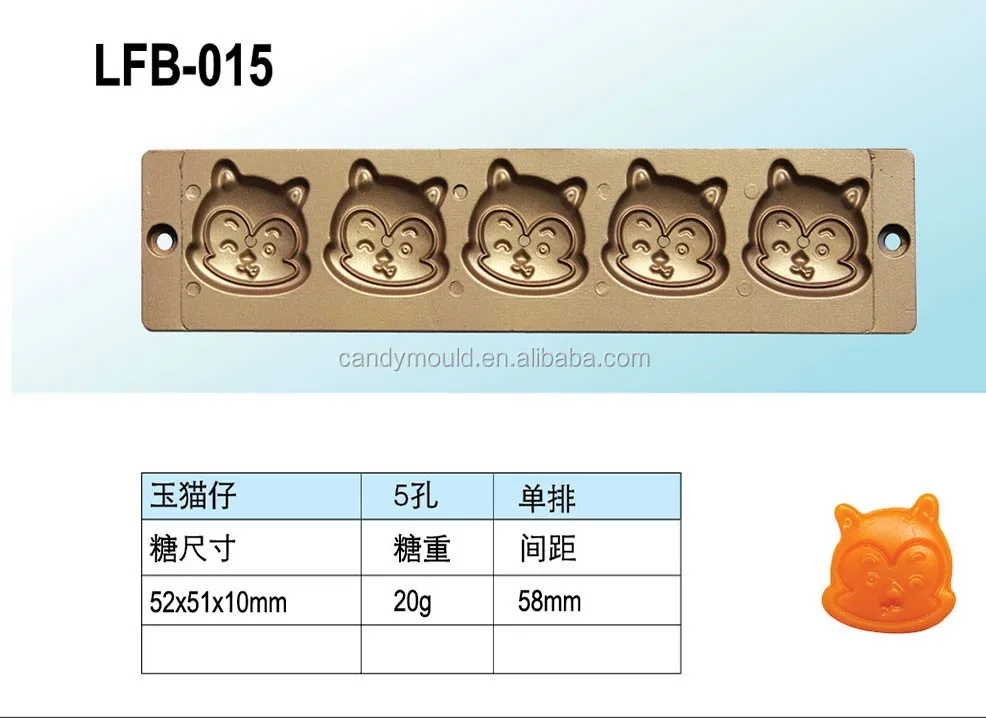

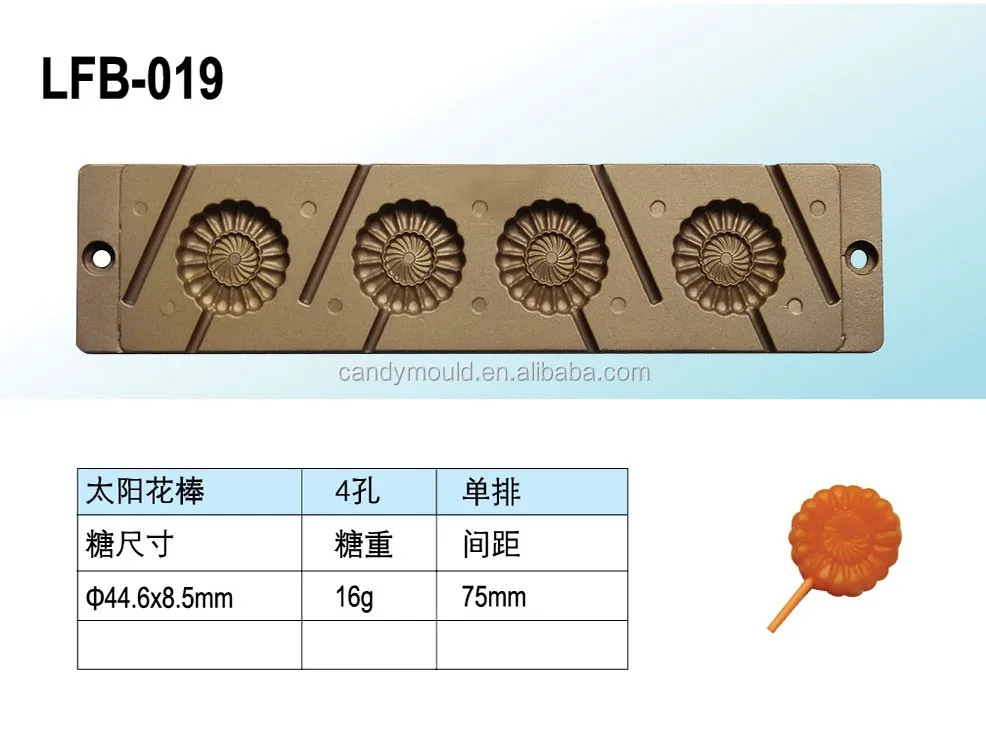

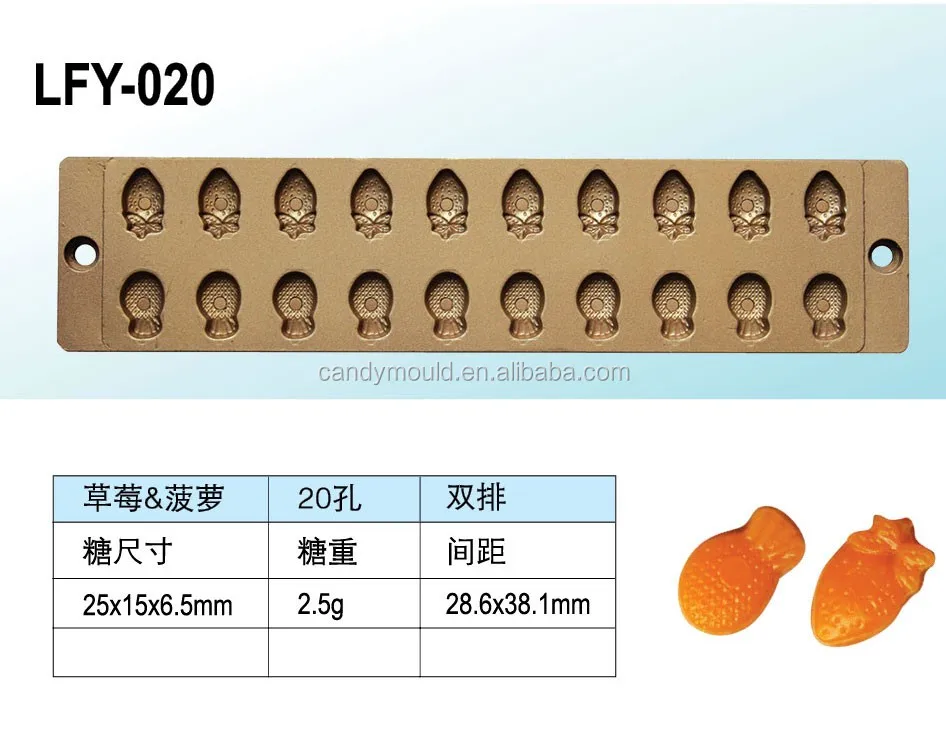

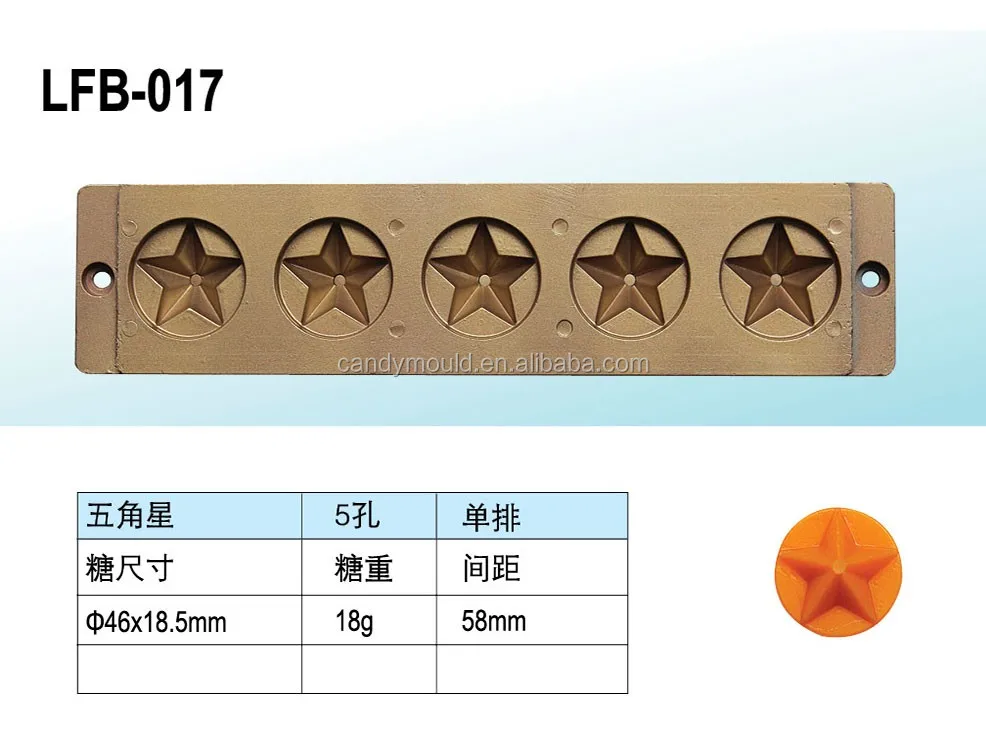

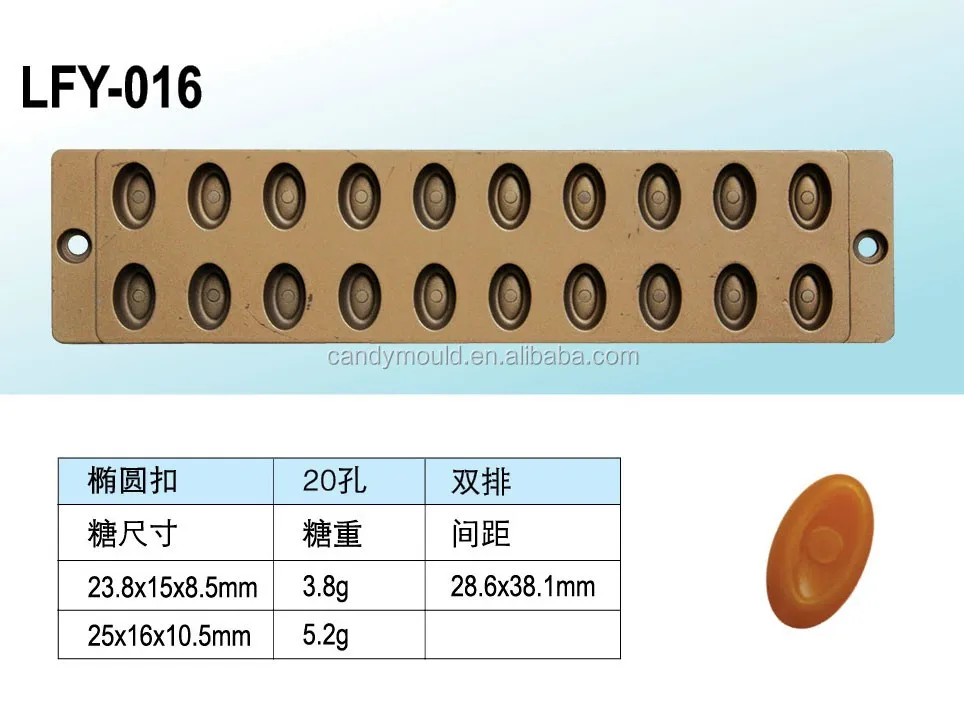

The picture of mould:

026_11027_03027_07029_10030_05029_12009_11009_08009_09011_09008_11008_12





Product Photos

 3.jpg 4.jpg
