Chocolate making machine production line

FOB Reference Price:Get Latest Price
US $10,000-60,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LFMJ
Model Number:
LF188
Application:
Chocolate
Voltage:
380V
Power(W):
45KW
Weight:
6500kg
Dimension(L*W*H):
18000*1650*2100mm
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Material:
SUS 304
Electrical Parts:
ABB Brand
Forming tyoe:
Moulding/Pouring
Filling speed::
14-24 n/min
Product Name::
High Capacity Chocolate Machine
Packaging Details::
Wooden boxes and pallets
SupplyAbility
SupplyAbility:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden boxes and cardboard boxes
Port
shanghai
Lead Time :
60day
Product Description

CQ600 FULL-AUTOMATIC CHOCOLATE MOULDING LINE

Full-automatic chocolate molding machine(CQ600) is a high automatic novel design, great output and labor-saving chocolate making equipment. Main part consist of Mold heating, Hot water circulating, depositing nozzle, vibrating plat, single-layer cooling tube, de-molding device, conveyer and etc.
Depositing plate can be replaced or increased for zebra chocolate.

technical parameters
Capacity
500-800kg/h
(depends on the block sizes)
Casting speed
up to20  n/Min
Mould size
300*800mm
( polyurethane proof)
Required moulds
140-160  pcs
Motor type
servo driven
(center feeling)  OR air cylinder
Total power
 about 25kw
Power of cooling tunnel
10HP*2(220AHU*2)
Gross weight
about 3500kg
Total outline size
20000*1200*1900mm

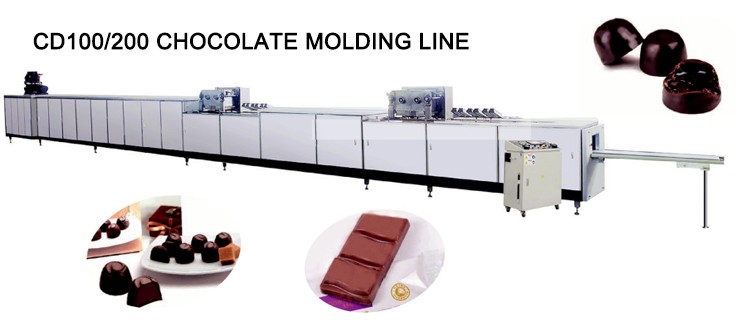

CD100/200 CHOCOLATE MOLDING LINE

This line can produce pour chocolate, central-filling, double layers andRight/left colour chocolate products.

Technical parameters
Model
CD100
CD200
Capacity
0.4~1.5  (T/Shift)
0.8~2.5  (T/Shift)
Power
15~18kw
21~30kw
Refrigerating capacity
                                                                15000~21800 (Kcal/hour)
Weight
2000~4500 (kg)
4800~6500 (kg)
Size of moid
(L*W*T)300×225×30mm
(L*W*T)300×225×30mm
Dimension
11000*1110*2000mm
12000*1210*2100mm
15180*1110*2300mm
18330*1210*2500mm
Qty of mould
100~200 (pcs)
220~300 (pcs)

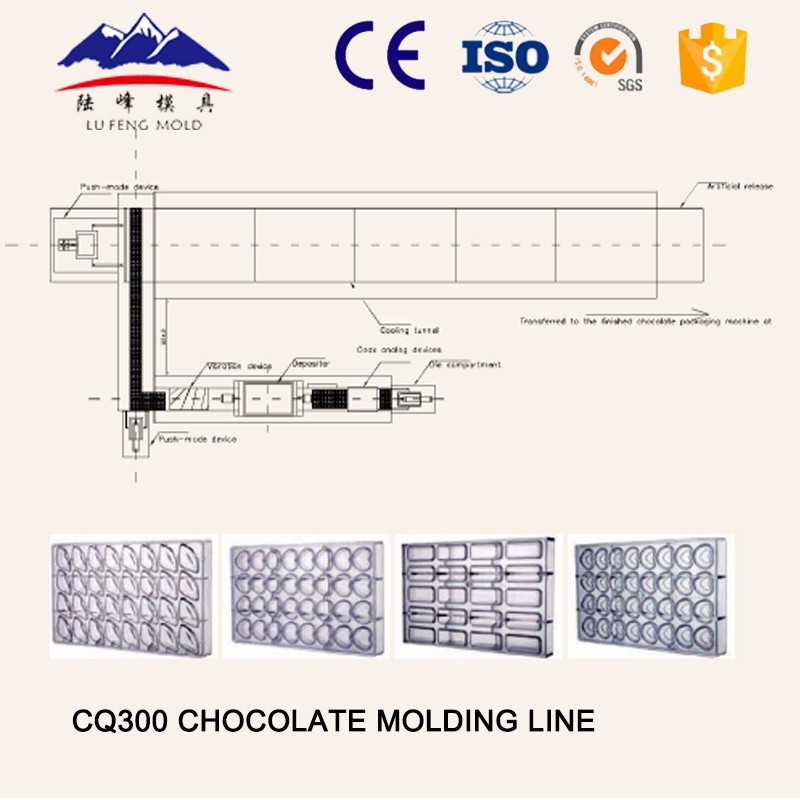

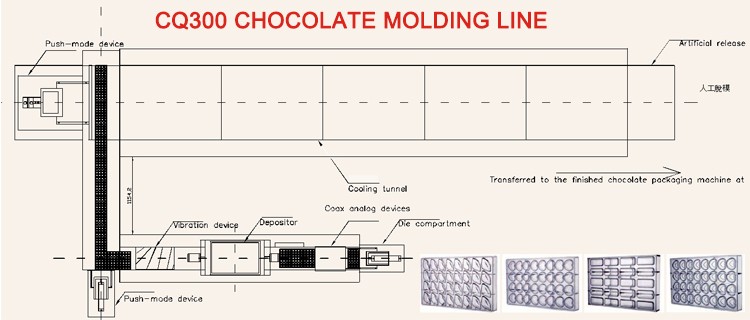

CQ300 CHOCOLATE MOLDING LINE


CQ300 semi-automatic chocolate molding machine is a hand operate device with standard chocolate mould(275*175mm),economical, structure compacted and small occupying area.

Technical parameters

 model
CQ300
Supporting project
Demand
rated capacity(kg/h)
200-300
required operators
3 person
single weight(g)
6
total areas
60 ㎡
casting speed
25~35 n/min
fridge output
10P
compressor pressure
0.25m3/min,0.4~0.6MPa
ground bearing
≥ 200kg/㎡
total power
17kw/380V
compressor power
≥ 3kw
total length(m)
10
temperature
≈ 10℃ -20℃
total weight(kg)
≈1500
moisture
50%  below

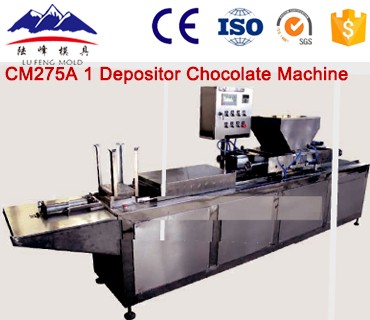

CM275A 1 Depositor Chocolate Machine
CM275 multi - functional chocolate depositing machine, collecting the advantages of the international advanced technology, application of PLC control system, pneumatic components as the main function. The machine is suitable for small and medium-scalefood manufacturer Lnternational standard design,can be stand-alone production, also can be combined into a complete production line. Produce 1or 2 or 3 color chocolate, chocolate with filling, chopped nuts chocolate, granular and lump chocolate.

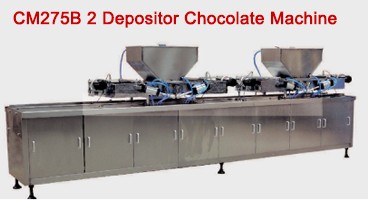

CM275B 2 Depositor Chocolate Machine

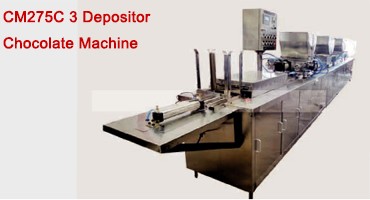

CM275C 3 Depositor Chocolate Machine.

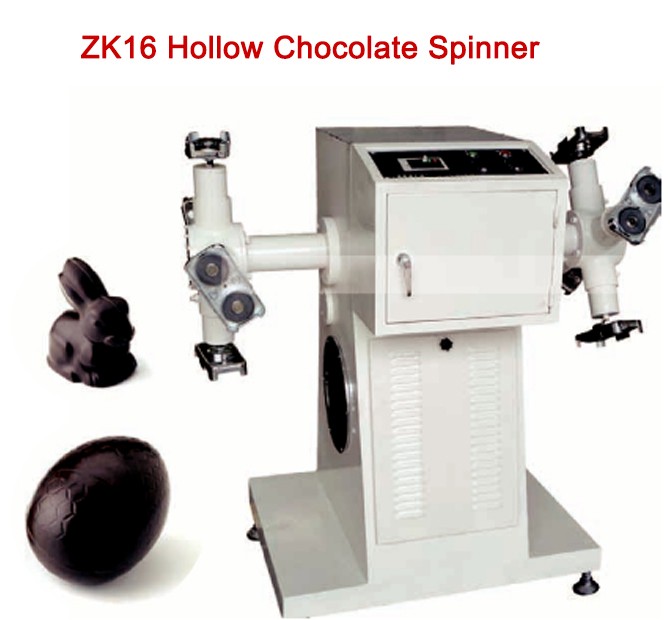

ZK16 Hollow Chocolate Spinner
ZK16 spanning machine has 8/16 sets hollow chocolate moulds, the hollow mold is equipped with many kinds of patterns selected by buyer, three-dimensional contouring and unique hollow type chocolate products, hollow type chocolate products can be made out through rotational centrifugation operation principle.

1.total power,about 1kw
a.power motor:0.55kw

b.fan motor:0.04kw*2

2.voltage:380v/50Hz

3.mould specificattion:(275mm*175mm)*2.

4.Capacity :about 8 moulds/1 bat
5.speed adjust range: ≤ 18rpm(stepless speed regulation)
6.machine weight:about600kg
7.machine size:1100mm*800m*1250mm

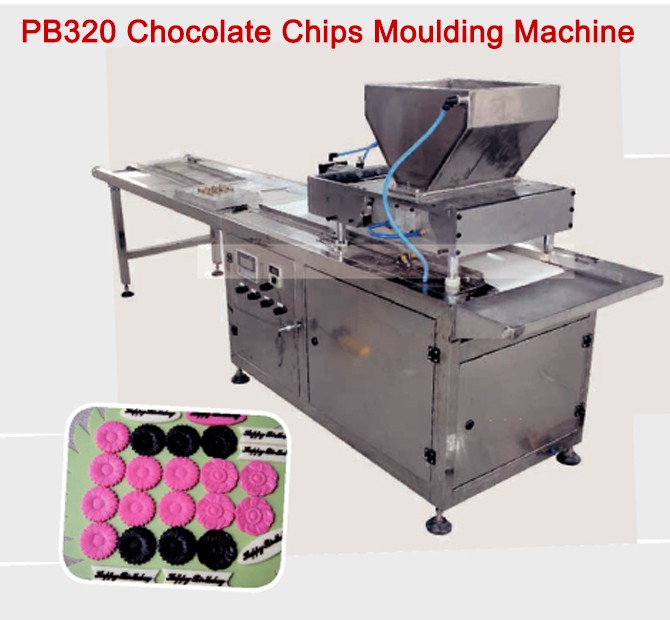

PB320 Chocolate Chips Moulding Machine
Blister plastic mould was adopted in this line. chocolate slices for decoration or particular form can be processed. It has advantages in easily operate and convenient de-moulding
Specifications
Casting Speed
20-30Times Per Minute
Single Mold Capacity
24-32(Depends On The Mould Design)
Total Power
5kW(3kW for heating)
Transport
Food Grade Pu Belt Conveyer
Equipment Out Size
2500*890*1300mm
Our Company

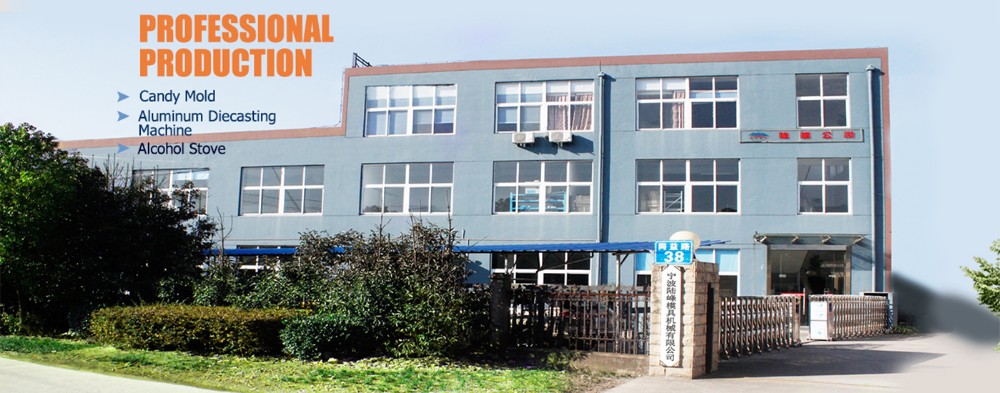

Factory.

Our Factory.

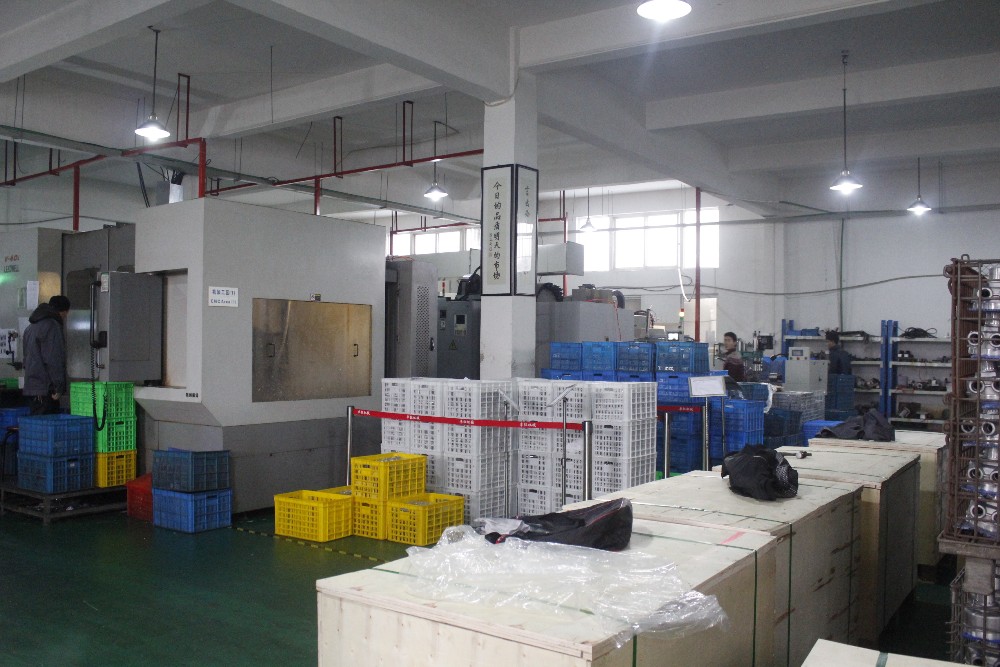

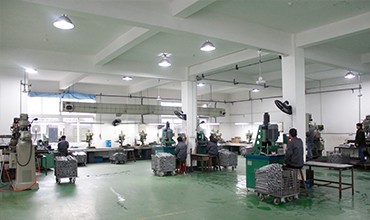

Workshop

Our Workshop

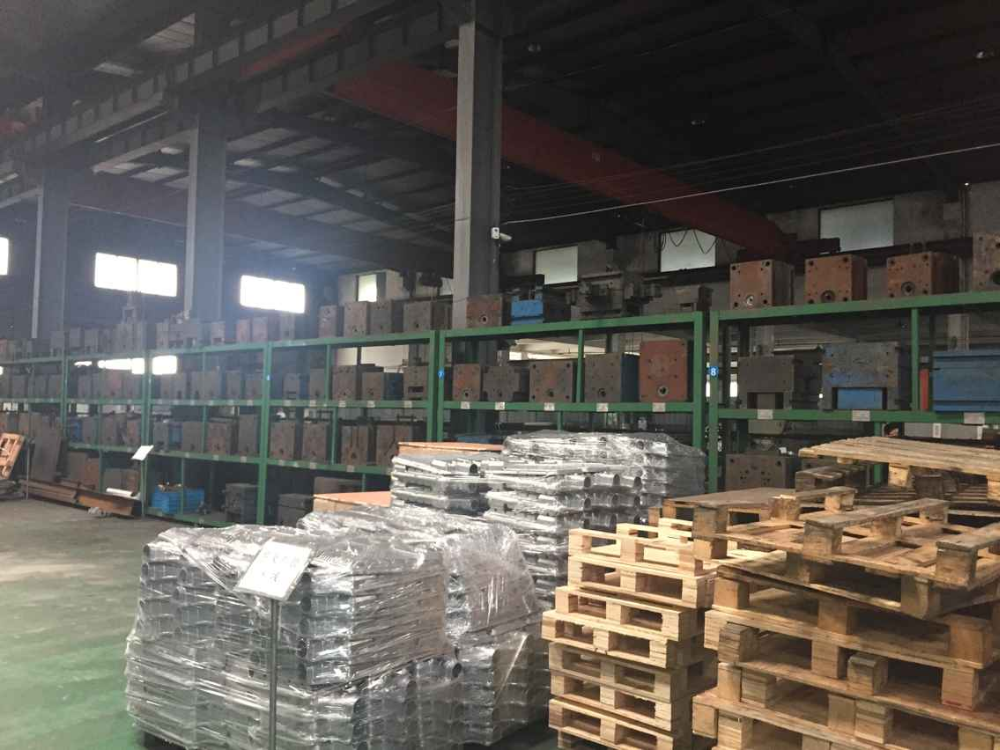

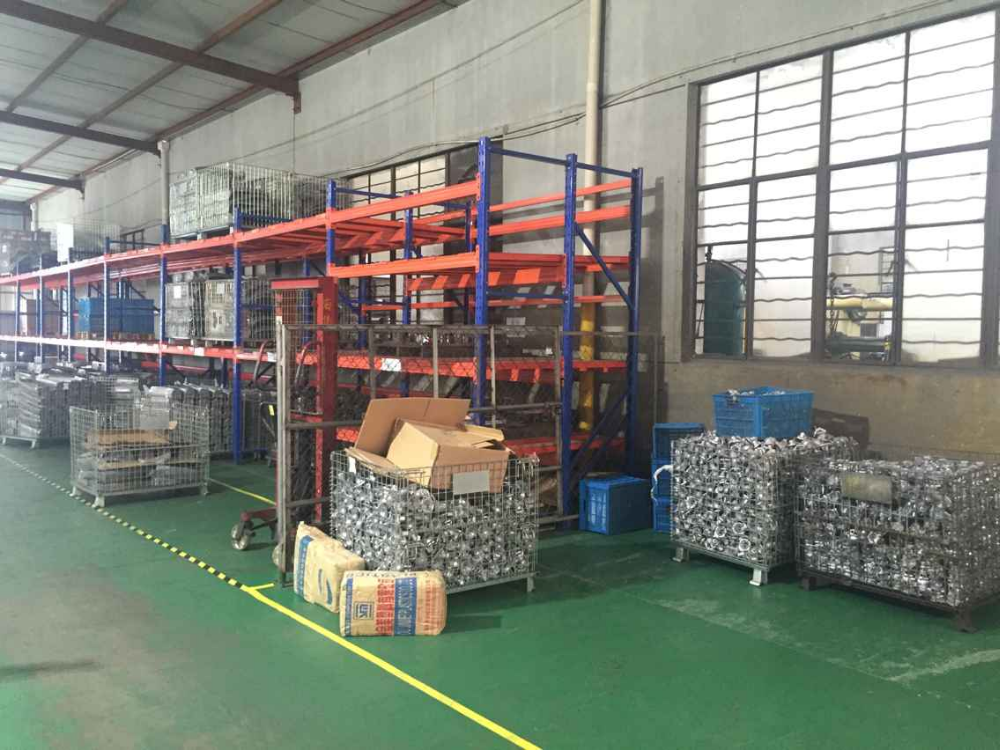

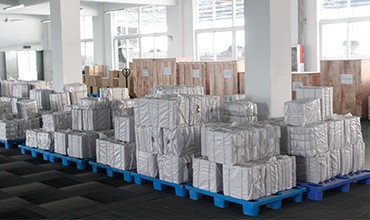

Warehouse

Our Warehouse

Our Die-casting workshop

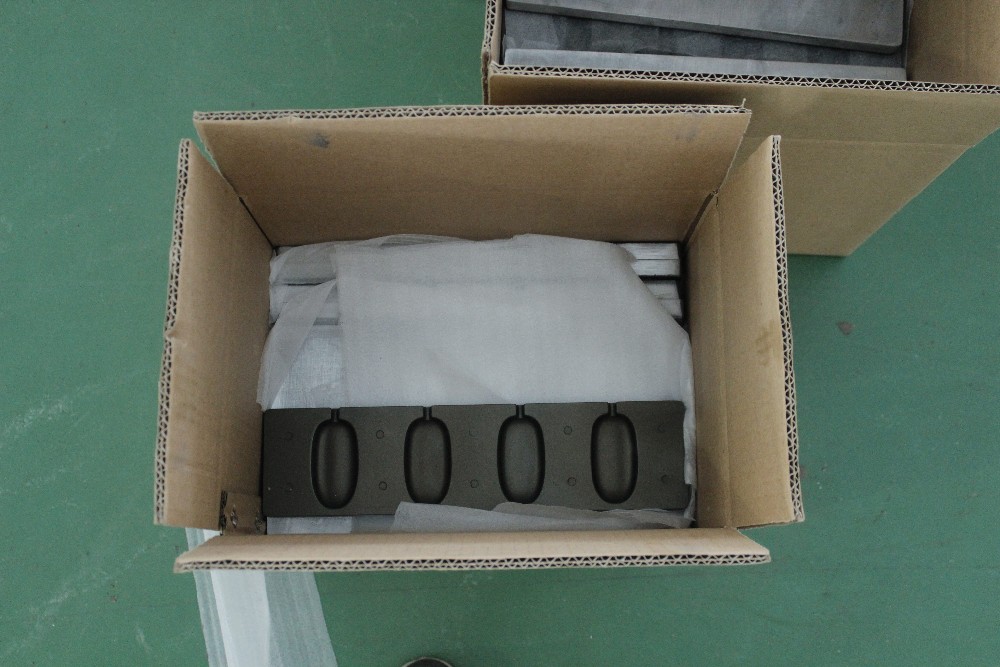

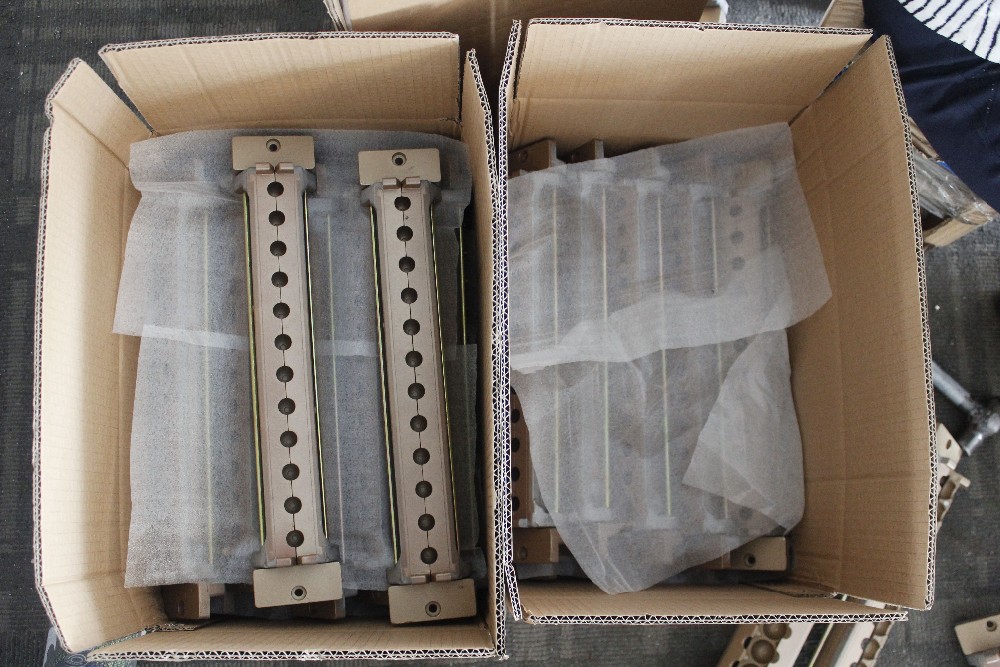

Packing & Delivery

Packing Details : Packing, solid bicycle saddle, 30pcs/carton
Delivery cycle: 15 days to 25 days

1. Special logistics packaging


2. Suitable carton size


3. Shock bubble film


4. Professional shock


5. Complete package


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
